2019 Ram 3500 Heavy Duty Limited Crew Cab Dually
Also unveiled was a newly refreshed Power Wagon and a new Laramie Black package complete with blacked-out styling and badges.
2019 Ram Power Wagon
Official Press Release:
2019 Ram 3500 Heavy Duty Limited Crew Cab Dually
“Ram Heavy Duty owners constantly demand the highest levels of capability to tackle the biggest jobs and with 35,100 lbs. of towing capacity, pulled by 1,000 lb.-ft. of torque from our Cummins engine, we now hold the most important titles within the segment,” said Reid Bigland, Head of Ram Brand, FCA. “We’ve also surrounded owners in luxury and technology that, until now, was unavailable in a heavy-duty pickup. The highest quality interiors, active safety systems and of course our award-winning Uconnect technology contribute to the best Ram 2500 and 3500 trucks we have ever built.”
2019 Ram Heavy Duty Cummins 6.7-liter I-6 badge
Engines: 6.7-liter Cummins High Output Turbo Diesel reaches 1,000 lb.-ft.
With a long list of upgrades, the new Cummins 6.7-liter I-6, high output Turbo Diesel delivers up to 1,000 lb.-ft. of torque @ 1,800 rpm and 400 horsepower @ 2,800 rpm. Changes begin at the core, with a cylinder block made from compacted graphite iron. Overall, the new Cummins Turbo Diesel weighs more than 60 lbs. less than the previous-generation engine, yet delivers more power and torque. A new cast-iron cylinder head builds on the new block with changes that include new exhaust valves and springs, and new rocker arms. Lighter and stronger pistons include new low-friction rings and connect to the crankshaft via newly design forged connecting rods and new bearings. An all-new exhaust manifold is the mounting point for an improved variable-geometry turbocharger with laminated heat shields, delivering boost pressure up to 33 psi.
The second variant of the Cummins Turbo Diesel also gets a performance boost with 370 horsepower @ 2,800 rpm and 850 lb.-ft. of torque @ 1,700 rpm.
The standard engine in the 2019 Ram 2500 and 3500 Heavy Duty is upgraded to the proven and potent 6.4-liter HEMI V-8, delivering class-leading 410 horsepower @ 5,600 rpm and 429 lb.-ft. of torque @ 4,000 rpm to handle the payload and towing requirements of the heavy-duty truck user.

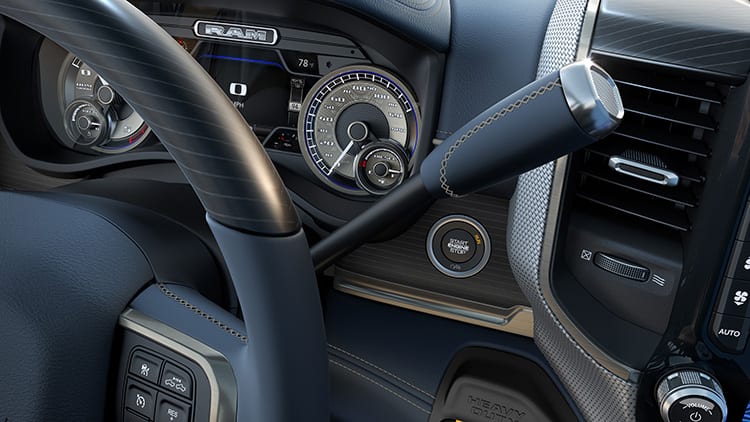

2019 Ram Heavy Duty 6-speed column shifter

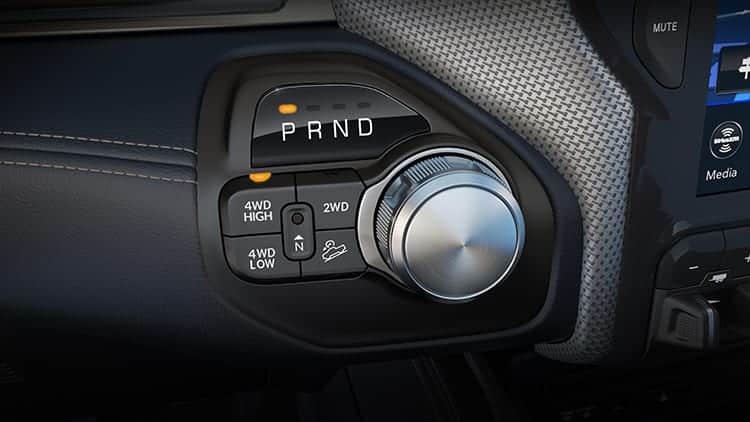

2019 Ram Heavy Duty 8-speed rotary shifter
In a first for the Ram Heavy Duty, the 6.4-liter HEMI V-8 comes mated to the proven and smooth-shifting TorqueFlite 8HP75 eight-speed automatic. There are more than 40 individual shift maps to optimize shift points for fuel economy, performance and drivability. The transmissions use shift-by-wire technology, eliminating a mechanical linkage between the transmission and the gear selector. The 2019 Ram Heavy Duty uses an innovative rotary e-shift dial mounted on the left side of the instrument panel’s center stack – freeing up space traditionally occupied by a console- or column-mounted shift lever.

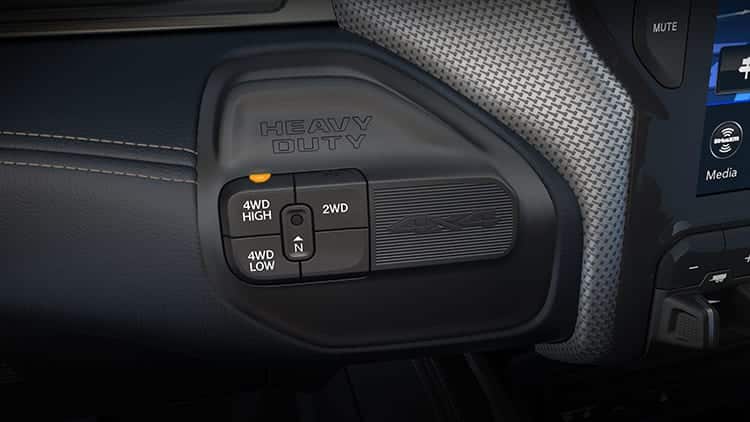

2019 Ram Heavy Duty diesel 4×4 T-Case shifter
Axles
New front and rear axles on the 2019 Ram 2500 and 3500 Heavy Duty have been engineered to improve durability, handle industry-leading payload and towing capabilities, and minimize Noise, Vibration and Harshness (NVH), as well as take advantage of opportunities to optimize weight. The Ram 3500 Heavy Duty is offered with an all-new, larger 12-inch AAM rear axle to handle the class-leading power and capability.
2019 Ram 3500 Heavy Duty Big Horn Sport Regular Cab
The 2019 Ram Heavy Duty is the most powerful, most capable pickup in the segment with a towing capacity of 35,100 lbs. and payload capacity of 7,680 lbs. But big capability is irrelevant if the truck fails to instill confidence to the driver. Ram redefines the phrase “you don’t even know it’s back there” when towing or hauling.
Frame
Ram Heavy Duty trucks feature all-new frames built with 98.5-percent high-strength steel, six separate crossmembers, hydroformed main rails and fully boxed rear rails for optimal strength and mass efficiency. Although the new Ram Heavy Duty is stronger and more capable, lightweight materials in the frame, powertrain and an aluminum hood reduce overall weight by up to 143 lbs. Two Active-Tuned Mass Modules (ATMM) mounted on the frame rails search out unfavorable vibrations and apply countermeasures to eliminate them.
Wide front frame rails enable front suspension springs to be positioned slightly outboard – an enabler for generating positive roll stiffness. In the rear portion of the new frame, the structure includes fully boxed rear rails. The rear-axle structural crossmember with provisions for fifth-wheel and gooseneck hitches, has been upgraded for 2019 to accommodate the increased towing capacity.
On vehicles equipped with the optional auxiliary camera prep package, the standard 4/7-pin bumper connector is replaced with a 12/7-pin connector to support the remote camera option (available Mopar accessory). A tailgate handle-mounted, rear high-definition camera backup system is standard with dynamic imaging on the 12-inch, 8.4-inch or 5-inch displays with turning guidelines. Also, the cargo-view camera located in the Center High-Mounted Stop Light (CHMSL) provides a view of the bed for easier connection to fifth-wheel or gooseneck trailers, as well as monitoring bed loads.
2019 Ram 3500 Tradesman – dually regular cab
A class-exclusive Active-Level rear air suspension is available on both the Ram 2500 and Ram 3500 and includes a new Bed-lowering Mode to make the heaviest trailer hook-ups a breeze. The 2019 Ram 2500 uses two air bags to replace the coil springs. Load capacity is not sacrificed and the Ram 2500’s best-in-class ride and handling gets even better, crushing the competition with two doses of engineering innovation (five-link coil with an air suspension option). The Ram 3500 features a Hotchkiss rear leaf-spring system with optional air suspension. By adding supplemental air bags, Ram engineers were able to soften the heavy-load leaf springs, allowing for more unladed suspension movement.
In the front, a new, two-piece, front-suspension crossmember structure adds a longer welded interface and greater strength to the frame. The Ram Heavy Duty line features an advanced three-link front suspension to ensure roll stiffness.
Brakes
A new braking system upgrades the calipers, booster and master cylinder. Combined with a larger-ratio pedal swing, the 2019 Ram Heavy Duty delivers a more confident and powerful execution with little effort from the driver. The reengineered system also offers shorter stopping distances and braking to match the highest capability.
Body
Several body elements are upgraded from mild steel to high-strength steel on the 2019 Heavy Duty pickups. Additional light-weighting efforts consist of an aluminum hood, which contributes to an overall weight reduction of 143 lbs. on the volume model.
Through wind-tunnel analyses and three million miles of real-world durability tests, engineers have created the quietest Ram Heavy Duty ever with a segment-leading drag coefficient of .409. Upgrades to improve NVH include new C-pillar hydromounts, anti-vibration devices, new engine mounts, active noise cancelling and new exhaust-system attachments.
2019 Ram Power Wagon
SAFETY AND SECURITY
The new 2019 Ram 2500 and 3500 Heavy Duty pickups include more than 100 available safety and security elements, including an array of active and passive systems to assist the driver and passengers, offered in all models.
Automatic Emergency Braking (AEB), 360-degree camera display and selectable tire pressures are just some of the new, specialized technologies found in Ram’s halo pickup trucks. Since the Ram Heavy Duty line is engineered around capability, it makes sense that many of the technologies would be enhanced from their use in passenger cars. For example, Tire Pressure Monitoring, which can monitor up to six tires on the pickup, now includes trailer tire pressure monitoring for up to 12 trailer tires. Although a back-up camera is a standard feature on most vehicles, the Ram Heavy Duty offers a second rear-view camera (cargo-view camera) to monitor payload in the bed. It also can be used to align fifth-wheel and gooseneck trailers, a common task of the Ram Heavy Duty pickup. As a segment-first, back-up sensors on the Ram 3500 include specifically designed sensors to cover the added width of dual rear wheels, giving a wider span of coverage when backing up with limited view.
The new Ram Heavy Duty uses a variety of high-strength steels in the frame, body panels and core structure to maximize impact performance and reduce overall weight, including the A-, B- and C-pillars, front structure and door beams. Increased resistance spot welds reduce the heat exposure to surrounding metal to maintain strength and long-term durability.
2019 Ram 3500 Heavy Duty Limited Crew Cab Dually with RV trailer
After hundreds of sketches, the new 2019 Ram Heavy Duty line of pickups came forward with the full force of modern capability. Interiors mirror the design expressed on the recently launched Ram 1500 with unmatched luxury, materials, innovation and technology extending well past any competitive offerings.

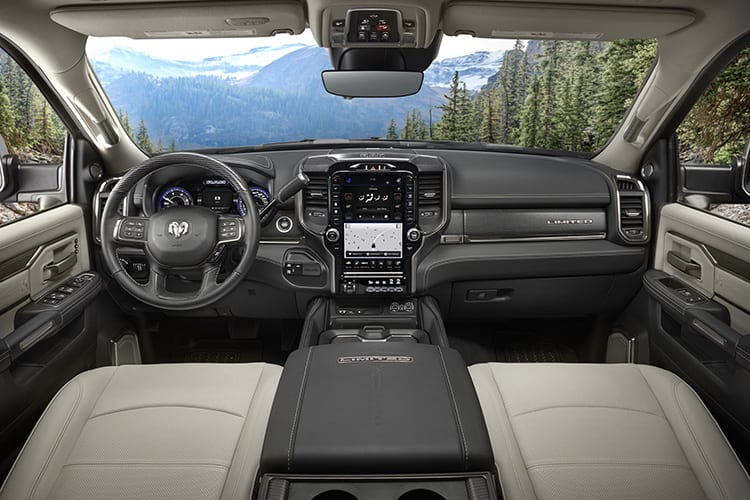

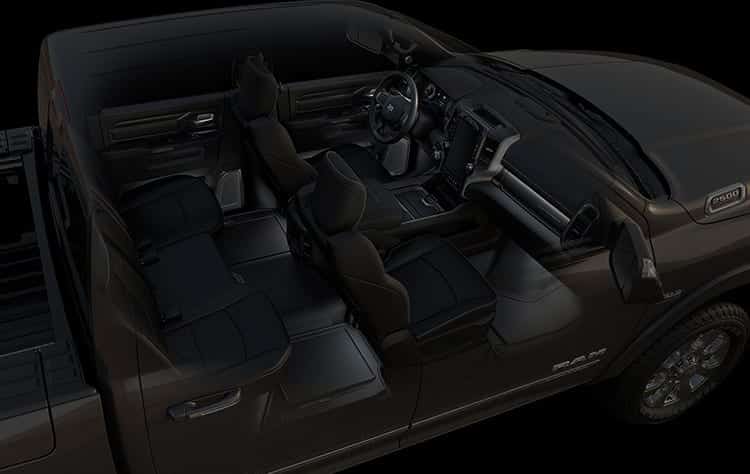

2019 Ram Heavy Duty Limited interior
The new instrument panel combines a strong, structurally interlocking appearance, pushing the central controls up and toward the driver, improving overall reachability of system controls. The 2019 Ram Heavy Duty features the Uconnect 4C NAV on a 12-inch fully configurable touchscreen, which can display one application, such as the navigation map, across the whole 12-inch screen, or can be divided in half, operating two different applications at once. Redundant HVAC controls and a new enhanced-ergonomic switch bank deliver improved feedback and appearance.
The new 2019 Ram Heavy Duty features an available 7-inch, full-color, 3D animation-capable driver information display, with reconfigurable function that enables Ram truck drivers to personalize information inside the instrument cluster. The display is designed to visually communicate information, using graphics and text, quickly and easily.
Across all trim levels, the 2019 Ram Heavy Duty features push-button start and a redesigned rotary e-shifter dial (HEMI V8 only). The new shifter area also intelligently groups new feature buttons, including Hill Descent Control, axle lock and transfer case controls, when equipped.

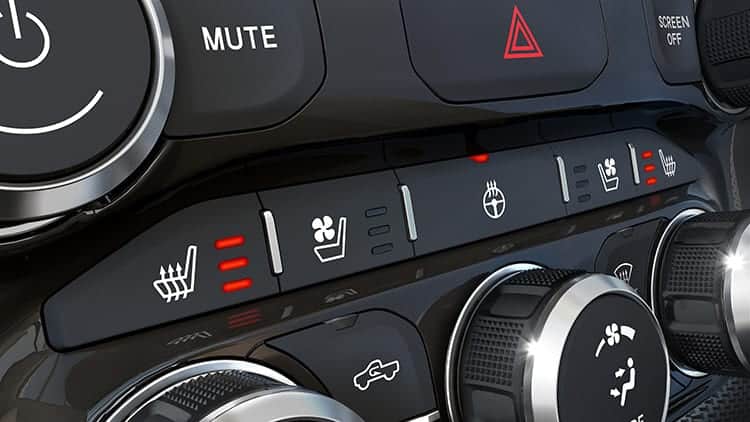

An active noise cancellation system and acoustic glass reduce ambient cabin sounds by nearly 10 db – the quietest Ram Heavy Duty ever. The new HVAC system features 30 percent more air flow at lower noise levels, including larger front defroster vents for better performance. All-new in-duct electric heating elements on diesel models help speed cabin warmup on cold days, and larger system controls and new larger panel ducts work better with gloved hands.

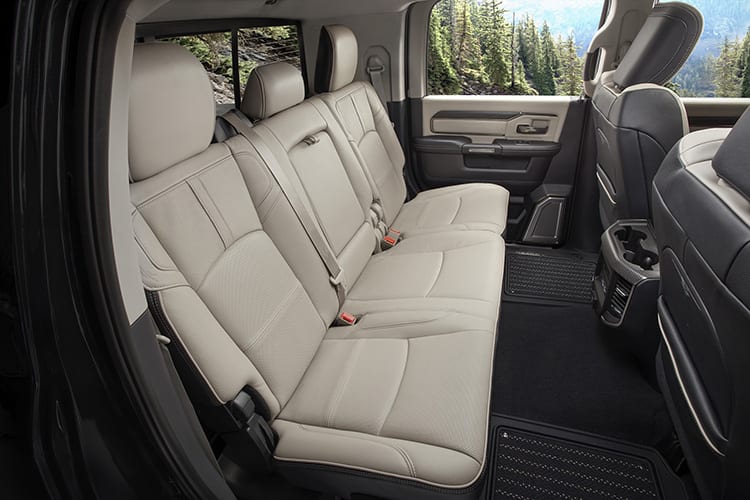

2019 Ram Heavy Duty Limited interior

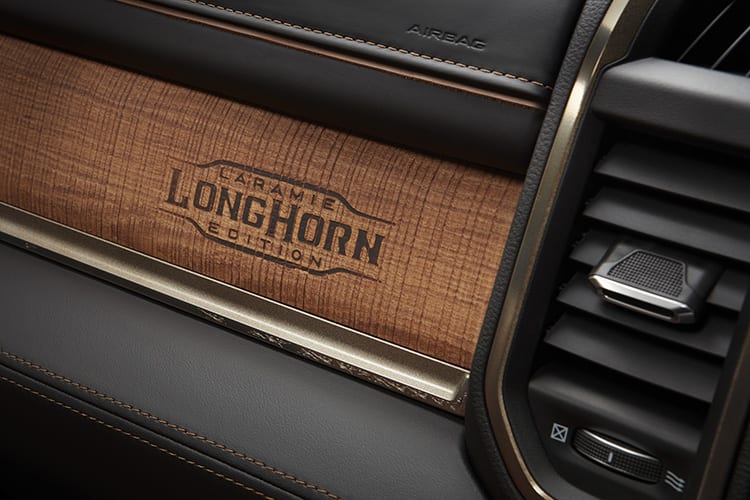

2019 Ram Heavy Duty Laramie Longhorn interior
Exterior
Robust sections combined with “interlocking” design aesthetics also function to improve aerodynamics to surround segment-leading capability and technology. Every Ram Heavy Duty truck benefits from new content specifically designed to match each model’s unique style. Rather than a traditional focus on styling elements individually, designers combined elements that influence each other’s shape, resulting in a more integrated look that aligns with the mechanical capabilities of the truck. For example, the grille, hood and fenders share pieces of each other, as well as the instrument panel, cluster and center console.
The 2019 Heavy Duty creates a bold and unique appearance that Heavy Duty customers can call their own. Interlocked with the new, lighter aluminum hood, a much larger and more aggressive front grille opening leads with confidence and strength. The 2019 Ram Heavy Duty is available in six different grille styles with a complete departure from the historic crosshairs. The new front bumper is cut with larger openings, providing greater airflow to the largest turbo intercooler Ram has ever adapted to its halo pickups. More than 20 sensors surrounding the new Ram Heavy Duty are seamlessly integrated to make them less visible. A removable air dam helps mold the most aerodynamic Heavy Duty Ram has offered.
Three headlamp variations are available delivering the best lighting in the segment: Halogen, full LED/reflector and full LED/projector with Adaptive Front-lighting System (AFS) for up to 15 degrees of movement in the expected direction of travel.
The side of the truck flows with trademark Ram style. A drawn body-side character line ties together the front fender and cab doors. An all-new interlocking side-step design incorporates deep tread patterns and a R-A-M logo.
The new Ram Heavy Duty continues to offer the best lockable bed storage in the segment with RamBox. The industry-first RamBox Cargo Management System includes versatile, weatherproof, lockable, illuminated and drainable storage bins built into the bed rails. New for 2019, RamBox features a 115-volt outlet with up to 400-watts of power.
Surrounding the largest cab in the segment, the interior design team brought unique colors and premium materials to each trim level of the 2019 Ram Heavy Duty. Each model makes its own unique “Hero” statement with paint colors, badging, wheels, grilles and other features.

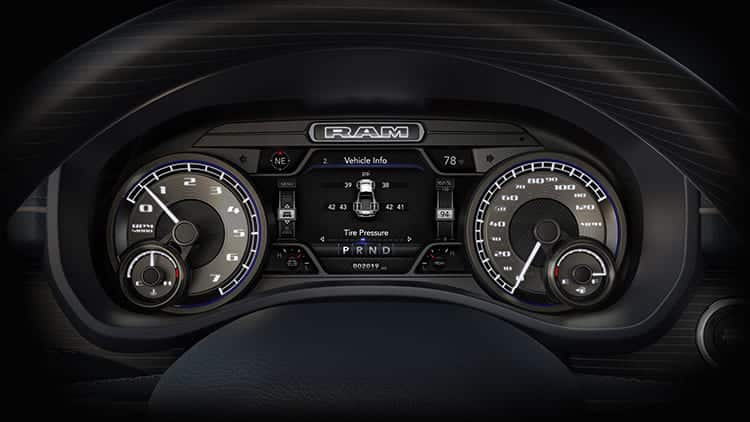

2019 Ram Heavy Duty cluster with dually tire pressure
Designed to be the most technologically advanced heavy-duty pickup ever, the new Ram 2500 and 3500 are loaded with an array of innovative and state-of-the-art features. The award-winning fourth-generation Uconnect system offers new convenience and connected services, and keeps Ram truck customers connected, engaged and informed all while keeping their hands on the wheel and eyes on the road.

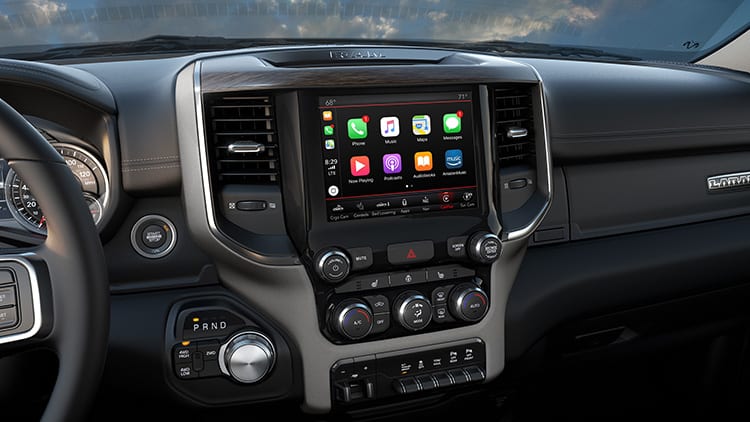

2019 Ram Heavy Duty 8.4-inch screen key pages
The new 2019 Ram Heavy Duty offers four audio systems to immerse passengers in the ultimate sound experience, including a 750-watt Harman Kardon Audio System with 17 speakers, including an 8-inch subwoofer.
The class-exclusive Uconnect 4C with 12-inch display also features the next level of audio entertainment with SiriusXM with 360L. The new service enables Ram truck drivers and passengers to discover more of what SiriusXM offers based on their listening preferences, including exclusive SiriusXM on-demand programming never before available in the dash. Benefits of the new SiriusXM with 360L include more channels (now 200+), access to thousands of hours of recorded on-demand programming and enhanced sports play-by-play offerings. Smart content recommendations enable listeners to discover more of what they love, based on listening habits. Individual listener profiles allow multiple drivers and passengers to customize and maintain their own presets, select preferences and pick up where they left off in the car.
Manufacturing
The 2019 Ram Heavy Duty is built at the Saltillo Truck Assembly Plant in Coahuila, Mexico.
